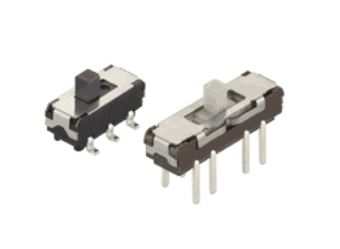

3.5(H)mm, 2.0mm行程型 SSSS2系列
适应各种携带式机器的小型·高密度化
■产品一览

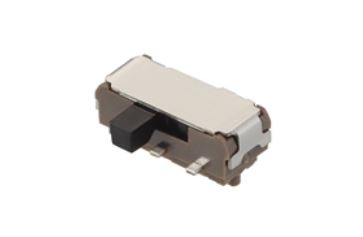

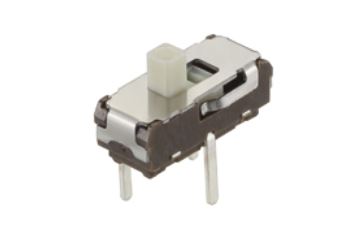

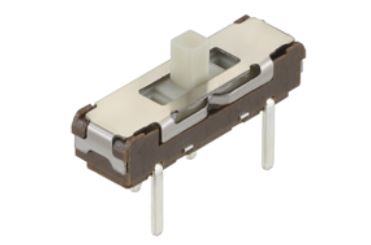

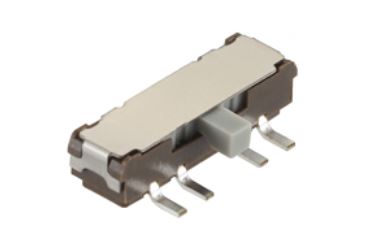

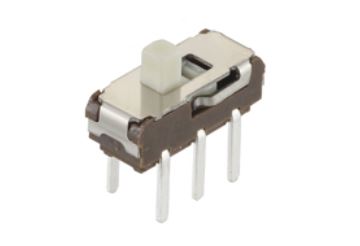

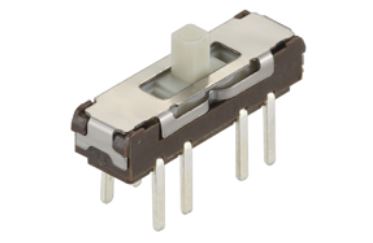

| 产品编号 | 照片 | 行程 | 操作部方向 | 操作部长度 | 电路数 | 接点数 | 动作力 | 切换时限 | 焊接方法 | 商城 | 3D |
| SSSS213000 |  | 2mm | Vertical | 2mm | 1 | 2 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS211900 |  | 2mm | Vertical | 2mm | 1 | 3 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS222700 |  | 2mm | Vertical | 2mm | 2 | 2 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS223600 |  | 2mm | Vertical | 2mm | 2 | 3 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS213202 |  | 2mm | Vertical | 2mm | 1 | 2 | 参考外形图 | Non shroting | Reflow | ||
| SSSS212901 |  | 2mm | Vertical | 2mm | 1 | 3 | 参考外形图 | Non shroting | Reflow | ||
| SSSS213100 |  | 2mm | Horizontal | 2mm | 1 | 2 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS212200 |  | 2mm | Horizontal | 2mm | 1 | 3 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS212400 |  | 2mm | Horizontal | 2mm | 1 | 4 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS223200 |  | 2mm | Horizontal | 2mm | 2 | 2 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS223900 |  | 2mm | Horizontal | 2mm | 2 | 3 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS224100 |  | 2mm | Horizontal | 2mm | 2 | 4 | 参考外形图 | Non shroting | Manual,Dip | ||
| SSSS211603 |  | 2mm | Horizontal | 2mm | 1 | 2 | 参考外形图 | Non shroting | Reflow | ||
| SSSS213800 |  | 2mm | Horizontal | 2mm | 1 | 3 | 参考外形图 | Non shroting | Reflow | ||
| SSSS224500 |  | 2mm | Horizontal | 2mm | 2 | 3 | 参考外形图 | Non shroting | Reflow |
