深圳市酷阳电子首页>产品中心>开关>旋转开关>6接点对应横型 SRBM系列

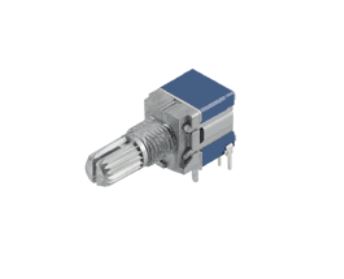

6接点对应横型 SRBM系列
形状相同，也可作为脉冲开关（20脉冲）。
■产品一览
| 产品编号 | 照片 | 底盘个数 | 电路数 | 接点数 | 切换角度 | 切换时限 | 旋转扭矩 | 操作部形状 | 操作部长度 | 商城 | 3D |
| SRBM120700 | | 1 | 2 | 2 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:15mm | ||
| SRBM121300 | | 1 | 2 | 2 | 30±3° | non shorting | 40±20mN.m | Flat | L:15mm | ||
| SRBM131300 | | 1 | 2 | 3 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:15mm | ||
| SRBM131400 | | 1 | 2 | 3 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:20mm | ||
| SRBM140700 | | 1 | 2 | 4 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:15mm | ||
| SRBM140800 | | 1 | 2 | 4 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:20mm | ||
| SRBM149501 | | 1 | 2 | 4 | 30±3° | non shorting | 40±20mN.m | Flat | L:20mm | ||
| SRBM150500 | | 1 | 2 | 5 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:15mm | ||
| SRBM154002 | | 1 | 1 | 5 | 30±3° | non shorting | 40±20mN.m | Flat | L:15mm | ||
| SRBM160700 | | 1 | 1 | 6 | 30±3° | non shorting | 40±20mN.m | 18-tooth serration | L:15mm | ||
| SRBM1L0800 | | 1 | 1 | 20-pulses | 18±3° | - | 15±7mN.m | 18-tooth serration | L:15mm | ||
| SRBM1L1400 | | 1 | 1 | 20-pulses | 18±3° | - | 15±7mN.m | Flat | L:15mm |
